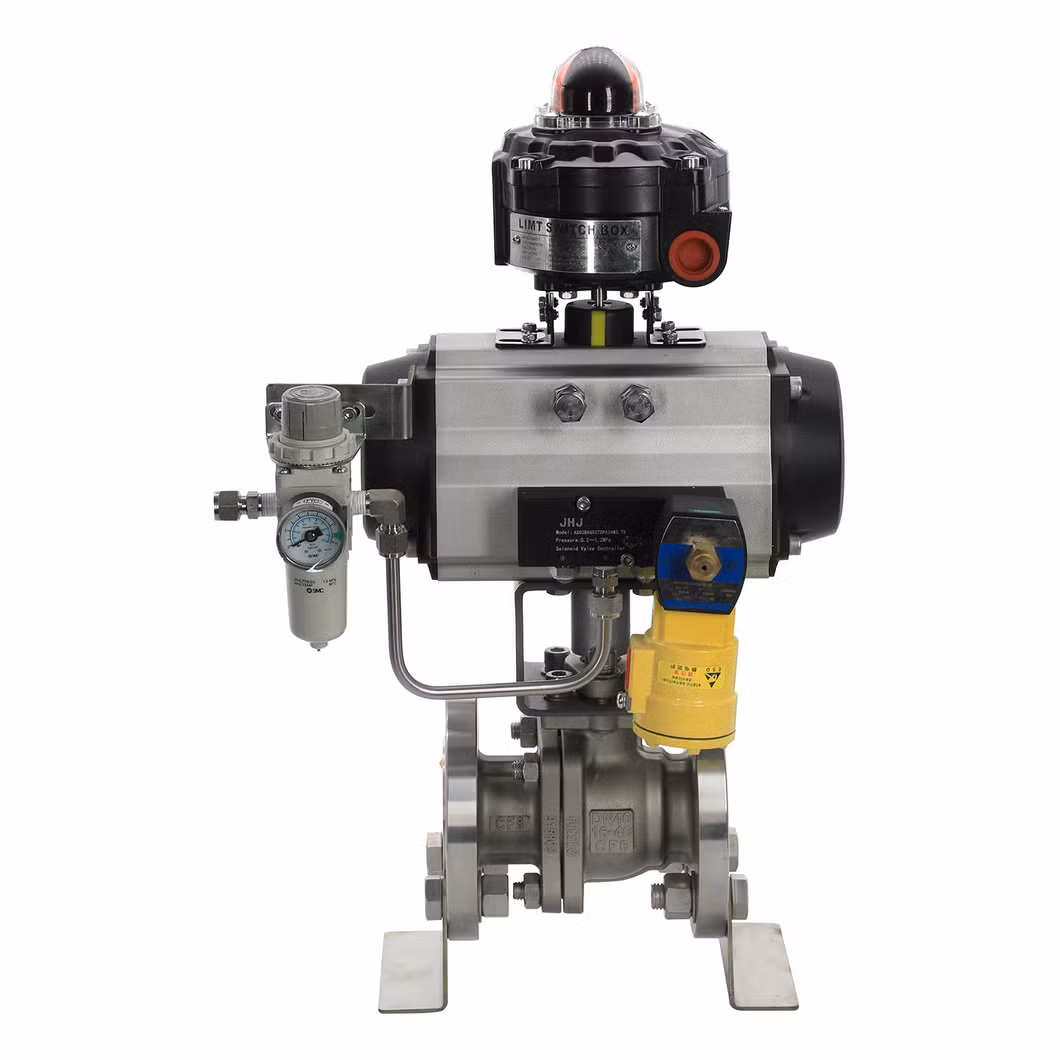

Product Description
| Body type | AOC-3843 | AOC3844 |
| Body size | 1/2''(40A)-6''(600A) | 1/2''(40A)-24''(600A) |
| Body rating | ANSI 150-2500 | ANSI150-2500 |
| Fluid temperature | -45~+200ºC | -45~+538ºC |
| Connections | RF/BW | |
| Body materials | A216WC,A217WC6/9,A351CF8,A351CF8M etc | |
| Ball Materials | A182 F304/F316/316L | |
| Ball Treatment | Polishing/Hard Chromium Plating | Hard Chromium/Surfacing STL/Spary Ni60/Sparyed tungsten carbide |
| Sealing Ring | PTFE/RTFE | Surfacing STL/Spary Ni55/Sparyed tungsten carbide |
| Valve seat leakage | API 598 0 leakage | ANSI B16.014V API598 0 leakage |
With unmatched precision, each valve's ball and seat are expertly crafted and fortified with cutting-edge hard coatings, such as chrome carbide or tungsten carbide. This advanced reinforcement ensures outstanding resistance to erosion and abrasion, significantly extending the valves' longevity and ensuring reliable performance in the most demanding environments.
The SNT High Performance Soft Seated Ball Valves are equipped with a revolutionary HVOF coating system. Every valve is painstakingly mate-lapped using exclusive proprietary techniques, assuring a flawless 100% sealing capability. The innovative live loading feature guarantees zero emissions and maintains constant contact between the ball and seat, effectively wiping away contaminants. This ingenious self-cleaning mechanism prevents interference and damage from particles, making these valves the optimal choice for challenging slurry and abrasive service applications.
The innovative anti-blowout design effectively safeguards against stem expulsion, thereby preventing potential damage and ensuring robust operational integrity.
Our meticulously engineered seat ring structure, featuring wave springs and dual scrapers, actively cleans the ball surface while maintaining an impeccable seal throughout its operation.
The dual-sealing mechanism ensures superior leak prevention by strategically isolating the flow from the spring contact, thereby upholding the highest leakage class standards.
Our advanced draining and sweeping design efficiently prevents valve jamming, ensuring optimal cleanliness and uninterrupted performance.
Engineered to comply with the rigorous API 607 standards, our valves boast fire-proof and anti-static capabilities, providing superior safety and resilience.
Their Distinctive and Outstanding Features Include:
A streamlined design that allows for effortless disassembly and reassembly.
Intelligently designed with maintenance ease at the forefront, our ball valves boast a non-tight fit design, enabling swift servicing to minimize downtime during scheduled maintenance, thus ensuring efficient operations.
State-of-the-art sealing technology that assures maximum security and leak-proof performance.
Featuring multi-layer sealing systems at the stem and body, our valves provide dual protection using an innovative blend of O-ring and graphite or PTFE, delivering unparalleled sealing efficiency.
Our groundbreaking design safely and effectively meets the stringent TA-Luft/Shell SPE 77/312 standards.
Extended Service Life for Unmatched Cost-Efficiency
Through advanced processing techniques such as spray welding, spraying, and fusion welding, our metal seated ball valves achieve a hardness level of HRC58-73 and a binding force between 80-40MPa. This results in a remarkable on-off cycle lifespan surpassing 100,000 operations, with a leakage class of ANSI VI, ensuring long-lasting performance and reliability.
Modular Design Providing Enhanced Operational Convenience
The modular inner sealing design offers easy interchangeability between soft and metal seats, guaranteeing flexibility, reliability, and seamless adaptability in diverse applications.
Various Connection Types for Unmatched User Convenience
Our valves come in various connection types, including flanged (RF, FF, FM, G, RJ), screw-thread, and BW, all adhering to international standards. This provides seamless integration and user-friendly experience, ensuring ease of use and installation.
Extensive Application Experience Ensuring Unrivaled Reliability
SNT Valves have built an outstanding reputation through widespread use in petroleum, chemical industry, light industry, pharmaceuticals, paper-making, metallurgy, and power stations. We deliver tailored solutions optimized for specific service conditions, guaranteeing superior market-leading reliability and performance.
SNT Machinery (Qingdao) Co., Ltd stands as a leading luminary in the world of control valve manufacturing. Nestled in the breathtaking environs of Qingdao, Shandong province, our sprawling 42,000m² facility is a testament to innovation and precision, meticulously equipped with state-of-the-art workshops and cutting-edge machinery. As a high-tech enterprise adorned with exclusive intellectual property rights, we harness global management and production prowess to deliver exceptional products. Our vibrant workforce exceeds 150 professionals, with 15% committed to pioneering R&D and 30% possessing advanced degrees. Driven by excellence and innovation, we craft superior valves that serve the petrochemical, oil, and coal chemical industries with distinction. In 2017, our sales revenue impressively approached a monumental 100 billion.
SNT proudly carries the prestigious TS special equipment manufacturing certificate and holds the esteemed ISO 9001 accreditation. We are honored to possess qualification certificates from industry giants such as SINOPEC, CNOOC, PETROCHINA, and SINOCHEM. Our portfolio is enriched with numerous national patents, showcasing our mastery across various technologies. With expertise that encompasses designing and manufacturing valves adhering to ANSI, API, DIN, BS, and JIS standards, we ingeniously blend the finest features of world-renowned valves with our proprietary R&D. Our extensive valve offerings include top-tier GLOBE, High Pressure Boiler Blow-down Valves, High-performance Butterfly Valves, Angle-regulating Valves, and Eccentric Rotary Valves.
Our remarkable product collection also features T Three-eccentric Center Butterfly Valves, V Ball Valves, High Wear-resistant Ball Valves, High Pressure Steam Valves, Micro-flow Control Valves, and Self-operated Control Valves, among others. We offer versatile driving options such as manual, power-driven, pneumatic, and hydraulic operations. Our main component materials include A216WCB, A217 WC6/WC9, and A351 CF8/CF8M/CF3/CF3M. Specifications encompass sizes from 1/2" to 120", with working pressures ranging from ANSI 150# to 2500#, and operational temperatures from -196ºC to 1100ºC.
Embracing advanced production technology and fortified by a robust quality assurance system, SNT valves are pivotal to diverse industries including petrochemical, oil, steel & iron, paper manufacturing, and power stations. Our prestigious clientele features esteemed names such as SINOPEC QILU branch, SINOPEC Qingdao branch, CNOOC Huizhou Refinery, PETROCHINA Guangxi branch, PETROCHINA Ningxia branch, SINOPEC Changling branch, and numerous others.
With an unwavering focus on maximizing customer profitability, we dedicate ourselves to upholding an exceptional quality standard and nurturing a reputable brand. Our comprehensive quality assurance and after-sales service systems ensure that SNT valves foster prosperous and enduring partnerships with every client.
