Basic Info.
Model NO.
Q41N
Connection Form
Flange
Driving Mode
Manual
Nominal Pressure
Pn16/Pn25/Pn40/Pn100
Channel
Full Bore
Structure
Floating Ball Valve
Type
DIN Soft Seal Ball Valve
Function
Blow-Down Valve, Switch for Fluid Control
Temperature
Normal Temperature
Standard
BS5351,ISO17292,En13709,DIN3357;API 608
Application
Industrial Usage
Test Standards
DIN3230, En12266,ISO 5208; API598,API6d
Pre-Temp. Rating
ASME B16.34
Face to Face
DIN3202,En558-1,En12982,ISO 5752; ANSI B 16.10,API
Ends Connection
RF, Rtj, Bw, NPT, Sw
Certificate
ISO 9001, CE, API 607, API 6D
Special
Nace Mr-0175
Quality Guarantee Period
18 Months
Supplier
Factory Direct
Transport Package
Plywood Wooden Case
Specification
100X100X100(CM)
Trademark
SHF
Origin
Jiangsu
HS Code
8481804090
Production Capacity
10000000
Packaging & Delivery
Package Size
25.00cm * 22.00cm * 20.00cm
Package Gross Weight
5.000kg
Product Description

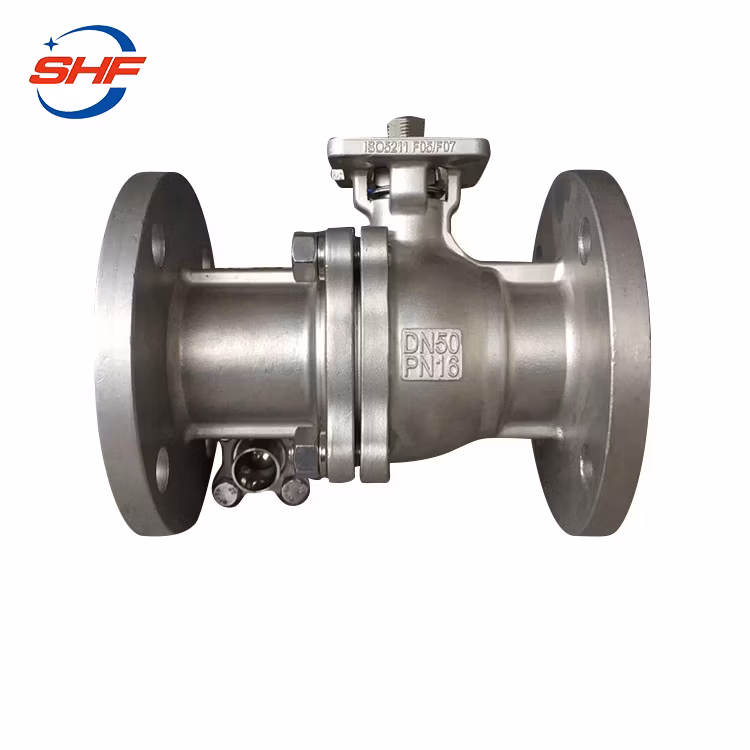

Construction is as follows:
| Name | Floating Ball Valve |
| Size | DN15-DN300 |
| Normal pressure | PN16/PN25/PN40/PN100;Class 150/300/600 |
| Design standard | BS5351,ISO17292,EN13709,DIN3357;API 608,API 6D, ASME B16.34, MSS SP-72 |
| Marked | MSS SP-25 |
| Fire safe design | API607,API 6FA |
| End flange | EN1092,DIN2543~DIN2547,AS2129; ANSI B 16.5,ASME B16.47 |
| Face to Face | DIN3202,EN558-1,EN12982,ISO 5752; ANSI B 16.10,API 6D; |
| Top flange | ISO 5211 |
| Test standard | DIN3230, EN12266,ISO 5208; API598,API6D |
| Suitable temperature | -29~200°C |
| Medium | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
| Acidic environment | NACE MR0175 |
| Operation | Hand Operated,Gear Operated, Electrical Actuated, Pheumatic Actuated |
Structure
| - Full Port or Reduce Port |
| - Split Body |
| - Bolted Bonnet with spiral-would gasket |
| - Fire Safe Design |
| - Anti-static Design & Blow-out proof stem |
| - Double seat structure |
| - Butt Weld Ends to DIN 3239,EN12627; ASME B16.25 |
| - Flanged Ends to EN1092,DIN2543~DIN2547; ASME B16.5 |
Main Part & Materials
| Part Names | Part Materials | ||||||
| Body | 1.0619 | LCB | CD4MCuN | 1.1120 | 1.4308 | 1.4306 | CF3M |
| Bonnet | 1.0619 | LCB | CD4MCuN | 1.1120 | 1.4308 | 1.4306 | CF3M |
| Ball | A105+ENP | SS304 | F51 | SS304 | SS304 | SS304L | SS316L |
| Stem | F6a | F304 | F51 | F304 | SS304 | F304L | F316L |
| Seat/Seat Ring | 13%Cr | SS304 | F51 | SS304 | SS316 | SS304L | SS316L |
| Seal Ring | RPTFE/PTFE/PEEK/NYLON/DELRIN | ||||||
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS316+Graphite | ||||||
| Bolts/Nuts | B7/2H | L7/4 | B8M/8M | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | |||||
| Suitable Temperature | -29~150 °C | -46~150°C | -29~150 °C | --29~150 °C | -29~150 °C | --29~150 °C | -29~150 °C |
Product Size
Product Display
Company Introduction
FAQ Q:Why choose us ?
A: we are a manufacturer, we have manufactured valve for over 20 years .
B. We have our own casting foundary in a large scale
Q. what is your payment term?
A: T/T , L/C or other acceptable payment.
Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Q:How about your capacity?
A:We have 300staffs,own 50 CNC machines,and five persons in charge of quality inspection and 5 engineers. Our 6 casting block workshops
can both ensure on time delivery and quality that last.
