Basic Info.
Product Description
| Body type | AOC-3841 | AOC3842 |
| Body size | 1/2''(15A)-6''(150A) | 1/2''(15A)-6''(150A) |
| Body rating | ANSI 150-600 | ANSI150-600 |
| Fluid temperature | -45~+200ºC | -45~+538ºC |
| Nominal diameter | DN15-DN150 | DN15-DN150 |
| Connections | RF/BW | |
| Body materials | A216WC,A217WC6/9,A351CF8,A351CF8M etc | |
| Ball Materials | A182 F304/F316/316L | |
| Ball Treatment | Polishing/Hard Chromium Plating | Hard Chromium/Surfacing STL/Spary Ni60/Sparyed tungsten carbide |
| Sealing Ring | PTFE/RTFE | Surfacing STL/Spary Ni55/Sparyed tungsten carbide |
| Valve seat leakage | API 598 0 leakage | ANSI B16.014V API598 0 leakage |
Our ball and seat are fortified with an exceptional hard coating of chrome carbide or tungsten carbide, ensuring superior resistance to erosion and abrasion. This robust coating is a testament to the durability and longevity of our product, delivering sustained performance even in the most challenging conditions.
At SNT Machinery (Qingdao) Co., Ltd., we employ an advanced HVOF coating system. Our proprietary mate-lapping technique assures 100% sealing, combined with live loading to eliminate emissions entirely. Ingeniously crafted, the ball remains in constant contact with the seat, effortlessly sweeping away any contaminants. This innovative self-cleaning feature is a game changer, preventing damage and interference from foreign particles, making this valve an ideal choice for slurry and abrasive services.
These exceptional ball valves boast the following features:
The simple structure allows for quick disassembly, facilitating swift and efficient maintenance.
Thanks to regular maintenance practices, our ball valves are designed for easy upkeep, featuring a non-tight fit design that significantly reduces servicing time.
Our valves guarantee unmatched security with advanced sealing technology.
The innovative multi-layer combined sealing between the stem and body provides a robust double seal through the strategic combination of an O-ring with either graphite or PTFE.
This exemplary design meets the stringent standards of TA-Luft/Shell SPE 77/312.
A long service life ensures exceptional cost-effectiveness.
For metal-sealed ball valves, we employ cutting-edge processes for the ball and seat ring such as spray welding, spraying, and fusion welding. These techniques ensure a hardness level of HRC58-73 and a binding force of 80-40MPa. Remarkably, our valves can perform over 100,000 cycles with a leakage class rating of ANSI VI.
Convenience is enhanced through modular design.
The modular inner sealing design allows for the interchangeability of soft and metal seats, ensuring adaptability and efficiency in various applications.
Diverse connection types ensure user comfort and flexibility.
Our connection options include widely recognized international standards such as flanged types (RF, FF, FM, G, RJ), screw-thread types, and BW types, guaranteeing convenient and adaptable usage.
Rich Expertise in Application Ensures Trust and Reliability.

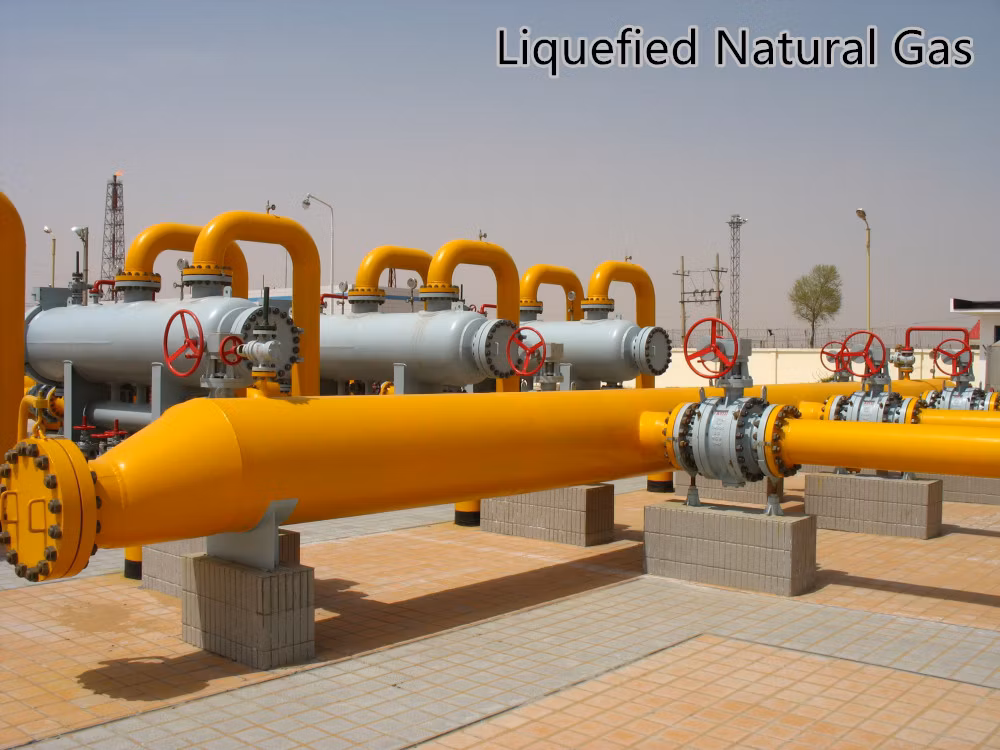

SNT Valves are extensively utilized in industries such as petroleum, chemical manufacturing, light industry, pharmaceuticals, paper-making, metallurgy, and power stations. Our products enjoy an esteemed reputation in the market, offering practical and reasonable solutions tailored to specific service conditions.
Our innovative special packing combination is engineered to meet stringent emission requirements, achieving an impressive 100 ppm, while simultaneously reducing stem friction by a remarkable 20%!
2. Our advanced seat ring structure, featuring a wave spring and dual-scraper technology, ensures the ball surface remains pristine and the seal intact.
3. Benefit from our dual-sealing technology, expertly designed to maintain the highest leakage class by preventing flow contact with the spring.
4. Enjoy the stability and reliability of our soft seat sealing performance, delivering consistency in every application.
5. Our intelligent draining and sweeping design effectively cleans the valve, preventing potential jams and ensuring seamless operation.
6. Adhering to the rigorous API 607 standards, our product offers exceptional fireproof and anti-static capabilities, ensuring safety and reliability at all times.
SNT Machinery (Qingdao) Co., Ltd, a leader in control valve production, seamlessly integrates manufacturing, design, sales, and service. With a strategic high start point and swift development, SNT is based in Qingdao, Shandong province, spanning 42,000m² and featuring state-of-the-art workshops and production facilities. As a cutting-edge enterprise with unique intellectual property and imported advanced management experience, we boast a team of over 150 dedicated professionals, including 15% in R&D and 30% with graduate or higher degrees. Our high-quality production management and innovative R&D enhance our capacity to produce an extensive range of superior valves for petrochemical, oil, and coal chemical industries, achieving nearly 100 billion in sales value as of 2017.
SNT proudly holds the TS special equipment manufacturing certificate and ISO 9001, and has secured network qualification certificates from SINOPEC, CNOOC, PETROCHINA, and SINOCHEM. Our commitment to innovation has earned us numerous national patents. We skillfully design and manufacture an array of valves adhering to standards like ANSI, API, DIN, BS, and JIS. By blending global valve excellence with our pioneering R&D, we offer a comprehensive range of valves including GLOBE, High Pressure Boiler Blow-down Valves, High-performance Butterfly Valves, Angle-regulating Valves, and Eccentric Rotary Valves.
Our extensive valve portfolio also encompasses T Three-eccentric Center Butterfly Valves, V Ball Valves, High Wear-resistant Ball Valves, High Pressure Steam Valves, Micro-flow Control Valves, Self-operated Control Valves, Cryogenic Valves, and more. These are available in manual, power-driven, pneumatic, and hydraulic operations. We utilize superior materials such as A216WCB, A217 WC6/WC9, and A351 CF8/CF8M/CF3/CF3M, with specifications ranging from 1/2" to 120", working pressures from ANSI 150# to 2500#, and temperatures between -196ºC and 1100ºC.
Harnessing advanced production technology, management, and a robust quality assurance system, SNT Valves have become indispensable in petrochemical, oil, steel & iron, paper manufacturing, and power station sectors. Esteemed clients include SINOPEC QILU and Qingdao branches, CNOOC Huizhou Refinery, PETROCHINA Guangxi and Ningxia branches, and SINOPEC Changling and Jinan branches. Our wide-reaching influence is a testament to our commitment to quality and reliability.
We prioritize customer profitability, dedicating ourselves to the creation of superior quality and a reputable brand. Our comprehensive quality assurance and after-sales systems ensure that SNT valves form lasting partnerships with customers, fostering shared success and prosperity.
