Product Description
| Body type | AOC-3843 | AOC3844 |
| Body size | 1/2''(40A)-6''(600A) | 1/2''(40A)-24''(600A) |
| Body rating | ANSI 150-2500 | ANSI150-2500 |
| Fluid temperature | -45~+200ºC | -45~+538ºC |
| Connections | RF/BW | |
| Body materials | A216WC,A217WC6/9,A351CF8,A351CF8M etc | |
| Ball Materials | A182 F304/F316/316L | |
| Ball Treatment | Polishing/Hard Chromium Plating | Hard Chromium/Surfacing STL/Spary Ni60/Sparyed tungsten carbide |
| Sealing Ring | PTFE/RTFE | Surfacing STL/Spary Ni55/Sparyed tungsten carbide |
| Valve seat leakage | API 598 0 leakage | ANSI B16.014V API598 0 leakage |
Crafted with unparalleled precision, the ball and seat of these valves are fortified with advanced, hard coatings using either chrome carbide or tungsten carbide. This superior protection offers remarkable resistance to both erosion and abrasion, ensuring extended longevity and unwavering reliability for demanding applications.
Our SNT High Performance Soft Seated Ball Valves feature an advanced HVOF coating system, ensuring unparalleled performance. Every valve undergoes meticulous mate-lapping with proprietary techniques to achieve an impeccable 100% sealing. The innovative live loading capability guarantees zero emissions, while the ball continuously contacts the seat to effectively remove contaminants. This state-of-the-art self-cleaning mechanism prevents particle interference and damage, making these valves the ultimate choice for slurry and abrasive service applications.
Ingeniously designed with an anti-blowout feature, this product effectively prevents stem blowout and averts potential damage to the casing.
The innovative seat ring structure, featuring a wave spring and dual-scraper, ensures the ball surface remains pristine while maintaining a robust seal.
Our dual-sealing technology ensures a superior leakage class by ingeniously preventing the flow from contacting the spring.
Our expertly designed draining and sweeping mechanism effectively safeguards the valve from jamming by thoroughly cleaning it.
Adhering to API 607 standards, our product boasts fire-proof and anti-static functions, delivering peace of mind with enhanced safety features.
Their Remarkable Features Include:
Elegant and streamlined design for hassle-free disassembly and reassembly.
Thoughtfully designed with maintenance convenience at its core, our ball valves boast a non-tight fit architecture, allowing for swift and simple servicing, significantly reducing downtime during routine maintenance tasks.
State-of-the-art sealing technology ensures optimal security and performance.
A sophisticated multi-layer sealing system within the stem and body offers dual protection using a combination of O-ring and either graphite or PTFE, ensuring unmatched sealing efficiency and reliability.
This forward-thinking design is built to meet the stringent TA-Luft/Shell SPE 77/312 standards, guaranteeing superior operational integrity.
Prolonged Service Life for Exceptional Cost-Effectiveness
Our metal seated ball valves are subjected to cutting-edge processing techniques, including spray welding, spraying, and fusion welding. This process achieves an impressive hardness range of HRC58-73 and a binding force of 80-40MPa, with an extraordinary operational lifespan surpassing 100,000 on-off cycles, and adhering to ANSI VI leakage class standards.
Innovative Modular Design for Increased Convenience
The modular inner sealing construction allows for seamless interchangeability between soft and metal seats, ensuring maximum flexibility and reliability in varied applications.
Diverse Connection Types for Enhanced User Convenience
Our valves are meticulously designed to offer a range of connection types, including flanged (RF, FF, FM, G, RJ), screw-thread, and BW. These conform to international standards, facilitating seamless integration and user-friendly operation.
Extensive Application Experience Ensures Unmatched Reliability

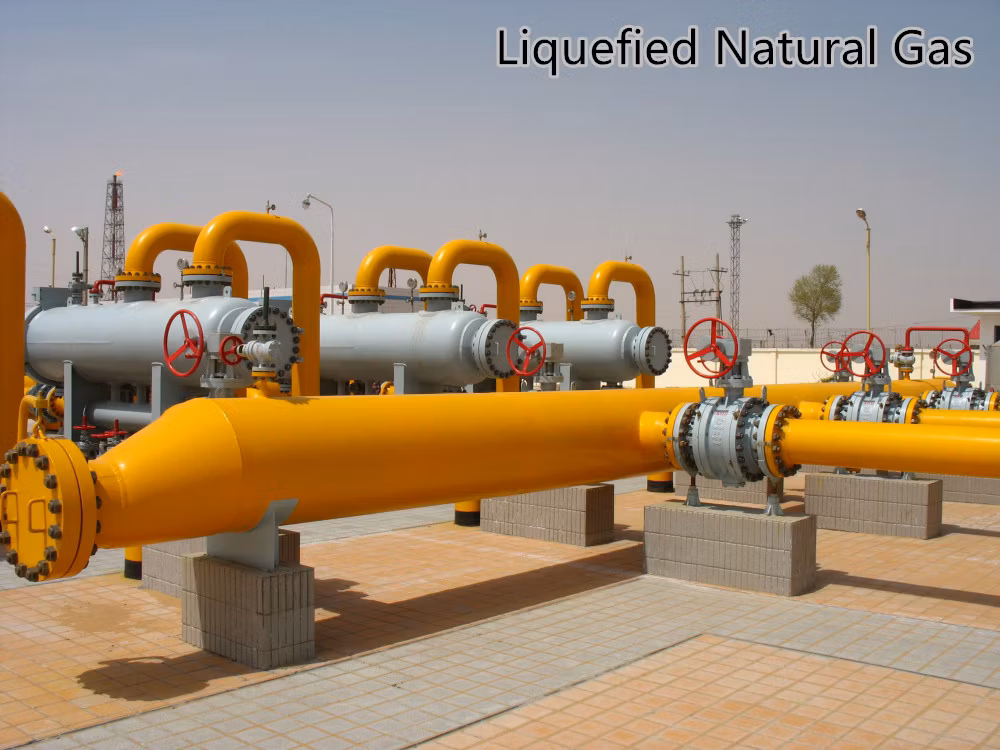

SNT Valves, renowned for their exceptional performance and reliability, have gained widespread acclaim through their extensive use in industries such as petroleum, chemical, light industry, pharmaceuticals, paper-making, metallurgy, and power stations. We provide solutions precisely tailored to specific service conditions, ensuring unparalleled market-leading reliability.
SNT Machinery (Qingdao) Co., Ltd. stands as a leading force in the world of control valve manufacturing, seamlessly integrating production, design, sales, and exceptional service. Nestled in the scenic beauty of Qingdao, Shandong province, our expansive 42,000m² facility is equipped with cutting-edge workshops and sophisticated machinery. As a vanguard high-tech enterprise, we boast exclusive intellectual property rights, reinforced by global expertise in both management and production. Our dynamic workforce, consisting of over 150 skilled professionals, includes an impressive 15% dedicated to Research & Development and 30% with advanced degrees. Driven by a commitment to innovation and excellence, our premium-quality valves have become vital components in industries such as petrochemical, oil, and coal chemicals. Notably, our 2017 sales revenue soared to an extraordinary nearly 100 billion.
SNT takes pride in holding the esteemed TS special equipment manufacturing certificate alongside ISO 9001 accreditation. Our exemplary qualifications are recognized by industry giants like SINOPEC, CNOOC, PETROCHINA, and SINOCHEM, while our portfolio is enriched with numerous national patents across diverse technologies. We specialize in the design and manufacturing of an extensive range of valves, compliant with international standards such as ANSI, API, DIN, BS, and JIS. By integrating the finest attributes of globally recognized valves with our proprietary R&D, we present a versatile selection including GLOBE Valves, High Pressure Boiler Blow-down Valves, High-performance Butterfly Valves, Angle-regulating Valves, and Eccentric Rotary Valves.
Our exceptional product suite further encompasses T Three-eccentric Center Butterfly Valves, V Ball Valves, High Wear-resistant Ball Valves, High Pressure Steam Valves, Micro-flow Control Valves, and Self-operated Control Valves, among other innovative solutions. We offer an array of driving forms such as manual, power-driven, pneumatic, and hydraulic operations. Our main component materials include A216WCB, A217 WC6/WC9, and A351 CF8/CF8M/CF3/CF3M. Specifications cater to a wide spectrum, with sizes ranging from 1/2" to 120", working pressures from ANSI 150# to 2500#, and operational temperatures from -196ºC to 1100ºC.
Leveraging advanced production technology and a rigorous quality assurance system, SNT valves are essential across numerous industries, including petrochemical, oil, steel & iron, paper manufacturing, and power stations. We proudly serve a prestigious client base, featuring prominent names such as SINOPEC QILU branch, SINOPEC Qingdao branch, CNOOC Huizhou Refinery, PETROCHINA Guangxi branch, PETROCHINA Ningxia branch, and SINOPEC Changling branch, among many others.
With a steadfast focus on enhancing customer profitability, we are devoted to establishing an unparalleled quality benchmark and a reputable brand identity. Our comprehensive quality assurance and after-sales service systems ensure that SNT valves foster prosperous and enduring partnerships with every client.
