Product Description
| Body type | AOC-3843 | AOC3844 |
| Body size | 1/2''(40A)-6''(600A) | 1/2''(40A)-24''(600A) |
| Body rating | ANSI 150-2500 | ANSI150-2500 |
| Fluid temperature | -45~+200ºC | -45~+538ºC |
| Connections | RF/BW | |
| Body materials | A216WC,A217WC6/9,A351CF8,A351CF8M etc | |
| Ball Materials | A182 F304/F316/316L | |
| Ball Treatment | Polishing/Hard Chromium Plating | Hard Chromium/Surfacing STL/Spary Ni60/Sparyed tungsten carbide |
| Sealing Ring | PTFE/RTFE | Surfacing STL/Spary Ni55/Sparyed tungsten carbide |
| Valve seat leakage | API 598 0 leakage | ANSI B16.014V API598 0 leakage |
Crafted with unmatched precision, the ball and seat of these valves are reinforced with advanced hard coatings of chrome carbide or tungsten carbide. This superior fortification ensures exceptional resistance to both erosion and abrasion, enhancing longevity and reliability.

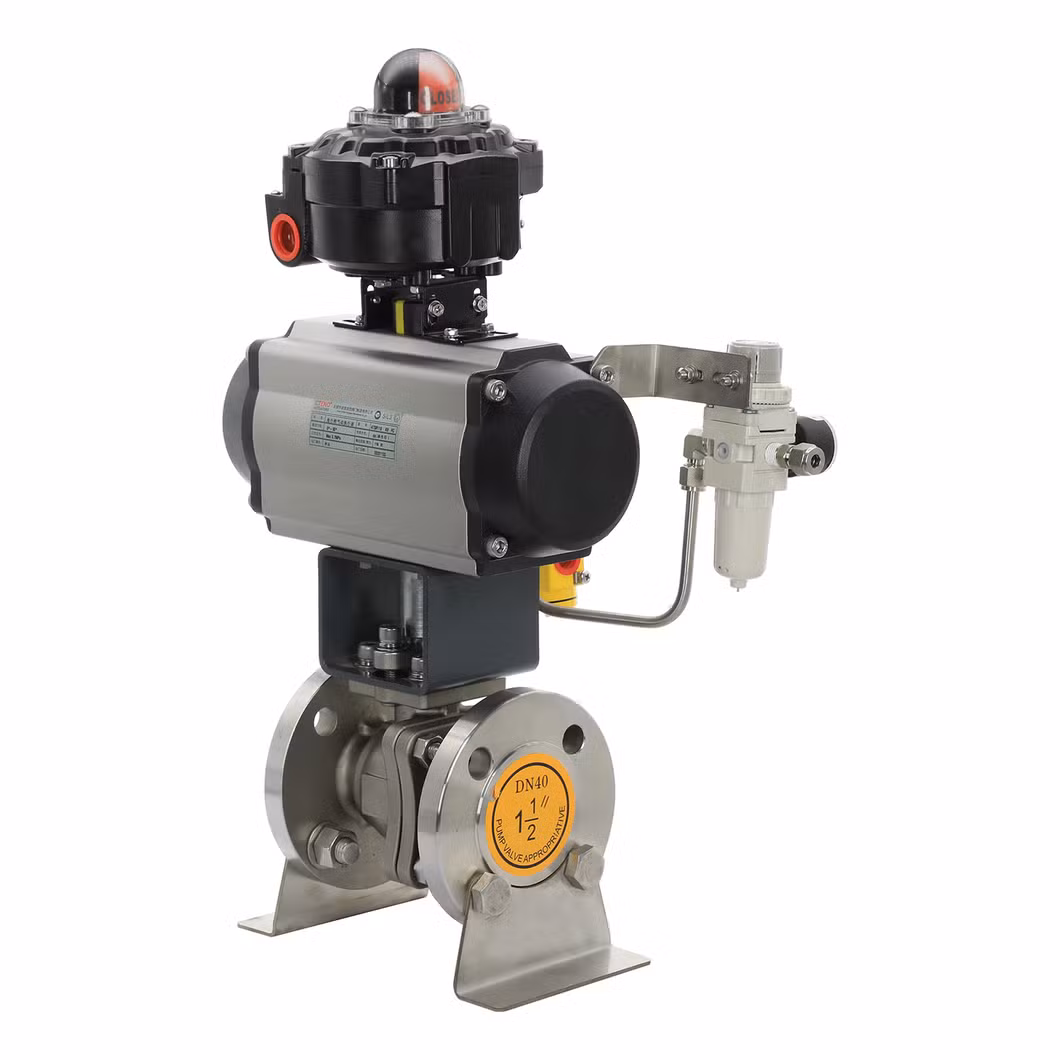

Our SNT High Performance Soft Seated Ball Valves incorporate a state-of-the-art HVOF coating system. Each valve undergoes meticulous mate-lapping using proprietary techniques to guarantee a flawless 100% sealing. The innovative live loading feature ensures zero emissions, while the ball remains in constant contact with the seat, effectively wiping away contaminants. This cutting-edge self-cleaning mechanism prevents interference and damage from particles, making these valves the perfect choice for slurry and abrasive service applications.
The design of anti-blow out canprevent the stem from blowing out to case damage.
The structure of seat ring of wave spring and dual-scraper can clean ball surface and keep sealing.
Dual-sealing can guarantee teh leacke class by making flow not to contact spring.
The design of draining and sweeping can prevent valve form jammed by cleaining.
Comply with API 607 standards with the functions of fire-prood and anti-Static.
Their Outstanding Features Include:
Streamlined design for effortless disassembly.
Designed with ease of maintenance in mind, our ball valves feature a non-tight fit design that facilitates quick servicing, minimizing downtime during periodic maintenance.
Cutting-edge sealing technology for maximum security.
The multi-layer sealing of stem and body delivers dual protection through a combination of O-ring and graphite or PTFE, ensuring exceptional sealing performance.
This innovative design meets the rigorous TA-Luft/Shell SPE 77/312 standards.
Extended Service Life for Superior Cost-Efficiency
Our metal seated ball valves undergo advanced processing techniques such as spray welding, spraying, and fusion welding. This guarantees a hardness range of HRC58-73 and a binding force of 80-40MPa, with an impressive on-off cycle lifespan exceeding 100,000 operations and a leakage class of ANSI VI.
Modular Design for Enhanced Convenience
The modular inner sealing design allows for easy interchangeability between soft and metal seats, ensuring flexibility and reliability.
Varied Connection Types for User Convenience
Our valves are available in various connection types, including flanged (RF, FF, FM, G, RJ), screw-thread, and BW, all of which conform to international standards, providing seamless and user-friendly integration.
Extensive Application Experience Guarantees Reliability
SNT Valves have earned a stellar reputation through widespread use in petroleum, chemical industry, light industry, pharmaceuticals, paper-making, metallurgy, and power stations. We deliver optimal solutions tailored to specific service conditions, ensuring market-leading reliability.
SNT Machinery(Qingdao) Co. , Ltd is a premier manufacturer of control valves, offering a seamless blend of production, design, sales, and services. Strategically situated in the picturesque Qingdao, Shandong province, our vast facility spans 42,000m², boasting state-of-the-art workshops and advanced production machinery. As a high-tech enterprise with exclusive intellectual property rights, we are armed with cutting-edge global management and production expertise. Our talented team of over 150 employees includes 15% dedicated to R&D and 30% holding advanced degrees. Committed to excellence and innovation, we produce top-tier valves widely used in the petrochemical, oil, and coal chemical industries. Our remarkable sales revenue soared to nearly 100 billion in 2017.
SNT proudly holds the prestigious TS special equipment manufacturing certificate and ISO 9001 accreditation. We have earned net qualification certificates from industry titans such as SINOPEC, CNOOC, PETROCHINA, and SINOCHEM, and our portfolio boasts numerous national patents across various technologies. Our expertise spans designing and manufacturing a comprehensive range of valves adhering to ANSI, API, DIN, BS, and JIS standards. By blending the finest features of renowned global valves with our proprietary R&D, we now offer an extensive array of valves, including GLOBE, High Pressure Boiler Blow-down Valves, High-performance Butterfly Valves, Angle-regulating Valves, and Eccentric Rotary Valves.
Our impressive product lineup also includes T Three-eccentric Center Butterfly Valves, V Ball Valves, High Wear-resistant Ball Valves, High Pressure Steam Valves, Micro-flow Control Valves, and Self-operated Control Valves, among others. We provide diverse driving forms such as manual, power-driven, pneumatic, and hydraulic operation. Main component materials include A216WCB, A217 WC6/WC9, and A351 CF8/CF8M/CF3/CF3M. Specifications range from 1/2" to 120" in size, with working pressures from ANSI 150# to 2500#, and operational temperatures from -196ºC to 1100ºC.
Utilizing advanced production technology and a robust quality assurance system, SNT valves are integral to various industries including petrochemical, oil, steel & iron, paper manufacturing, and power stations. Our esteemed clientele includes distinguished names such as SINOPEC QILU branch, SINOPEC Qingdao branch, CNOOC Huizhou Refinery, PETROCHINA Guangxi branch, PETROCHINA Ningxia branch, SINOPEC Changling branch, and many more.
Focused on maximizing customer profitability, we are committed to establishing an exceptional quality standard and a reputable brand. Our extensive quality assurance and after-sales service systems ensure that SNT valves cultivate prosperous partnerships with all our clients.
