Basic Info.
Model NO.
FRQH40F
Material
Fluorine Lining
Connection Form
Flange
Structure
Swing
Pressure
Ordinary Pressure
Function
Sfcv Rubber Lobe
Sealing Form
Self-Sealing
Flow Direction
Bidirectional
Standard
DIN
Application
Industrial Usage, Water Industrial Usage
Face to Face
Size Can Be Customized
Color
Colors Can Be Customized
Fluorine-Lined Material
According to Customer Requirements
Co (Certificate of Origin)
Authorized by The Chinese Customs
Transport Package
Wooden Box
Specification
DN20~DN500
Trademark
FREE-VALVE
Origin
China
HS Code
8481809000
Production Capacity
200 Set/Month

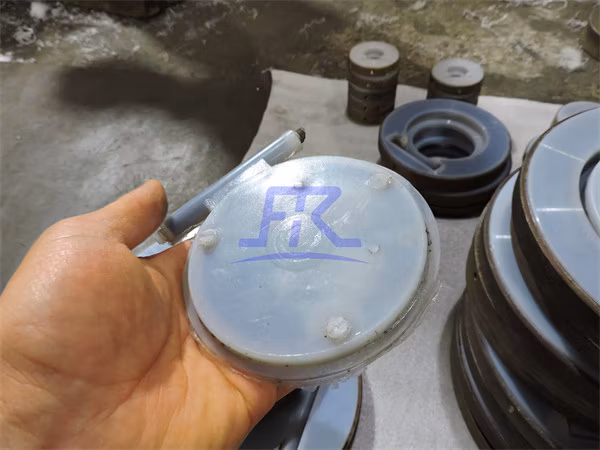

Product Description
FREE-VALVE Flanged Fluorine Rubber Lined Floating Ball Type Check Valve is straight type three piece design and manufactured in full port uni-directional body design fully lined with FEP, PFA And PTFE having Flanged Ends.The valve uses PTFE as the rolling valve ball, the valve can be opened or closed by ball rolling up and down in the slide of the body chamber body under the medium acting.Under normal flow the valves solid PTFE ball is pushed away from it's seat and fluid flows through the valve,in a backwards flow condition the ball is pushed firmly back into it's seat and prevents flow through the valve stopping process, etc.
Features
Technical Specification:
Service Temperature and suitable media of body lining material
Main outline and connection dimensions
Note: Our company also produces other pressure grade products, flange connection size according to customer requirements according to GB/T9113 or ASME B16.5.
Application:
FREE-VALVE Flanged Fluorine Rubber Lined Floating Ball Type Check Valves are mainly used in cold water, chemical and other pipe networks to prevent media flow back.
Features
1. The valve body adopts full bore, with large flow and small resistance.
2. Good sealing performance, noiseless closing, no water hammer.
3. Horizontal or vertical installation is acceptable.
4. Fully Lined Design to eliminate surface contact which provides maximum corrosion resistance
2. Good sealing performance, noiseless closing, no water hammer.
3. Horizontal or vertical installation is acceptable.
4. Fully Lined Design to eliminate surface contact which provides maximum corrosion resistance
Technical Specification:
| 1 | Size Range | DN15~DN200 |
| 2 | Nominal pressure | Class 150 /PN10/PN16 |
| 3 | Applicable Temperature | -10ºC~+180ºC |
| 4 | Connection Type | Flange |
| 5 | Lining Material | PTFE , PFA , FEP |
| 6 | Ball | PTFE |
| 7 | Seat | PTFE , PFA , FEP |
| 8 | Pressure test | GB/T13927, API598 |
| 9 | Face to Face | GB/T12221, ASME B16.10 |
Service Temperature and suitable media of body lining material
| Lining material | Service temperature,°C | Application medium |
| NR | -10°C~+85°C | exclusive of strong oxidants:fluorosilicic acid, phenolic acid, 30 percent sulfuric acid, 80 percent phosphoric acid, alkali, salt, gold plating solution, sodium hydroxide, potassium hydroxide, neutral salt aqueous solution, 10 percent sodium hypochlorite, ammonia, most alcohols, organic acids and aldehydes,ect |
| EPDM | ≤120°C | It has the similar acid and alkaline properties of natural glue, and it is very good for low pressure steam, hot water and cold water. |
| PTFE(F4) | ≤180°C | Strong acid, strong base, strong oxidant, organic solvent, etc |
| FEP(F46) | ≤120°C | Any organic solvents or reagents, xi or concentrated inorganic acids, bases, ketones, aromatics, chlorinated hydrocarbons, etc |
| PFA | ≤180°C | Strong acid,strong alkali,Strong oxidant, organic solvent, etc |
Main outline and connection dimensions
| DN | PN | L | D | D1 | D2 | n-∅d |
| 15 | PN10 | 130 | 95 | 65 | 45 | 4-∅14 |
| 20 | PN10 | 150 | 105 | 75 | 55 | 4-∅14 |
| 25 | PN10 | 160 | 115 | 85 | 65 | 4-∅14 |
| 32 | PN10 | 180 | 140 | 100 | 78 | 4-∅18 |
| 40 | PN10 | 200 | 150 | 110 | 85 | 4-∅18 |
| 50 | PN10 | 230 | 165 | 125 | 100 | 4-∅18 |
| 65 | PN10 | 290 | 185 | 145 | 120 | 4-∅18 |
| 80 | PN10 | 310 | 200 | 160 | 140 | 8-∅18 |
| 100 | PN10 | 350 | 220 | 180 | 155 | 8-∅18 |
| 125 | PN10 | 400 | 250 | 210 | 185 | 8-∅18 |
| 150 | PN10 | 480 | 285 | 240 | 210 | 8-∅22 |
Note: Our company also produces other pressure grade products, flange connection size according to customer requirements according to GB/T9113 or ASME B16.5.
Application:
FREE-VALVE Flanged Fluorine Rubber Lined Floating Ball Type Check Valves are mainly used in cold water, chemical and other pipe networks to prevent media flow back.
