Basic Info.
Model NO.
Q11F
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
1000wog / Pn63
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Shut-off
Temperature
-20~232
Standard
GB,DIN,ANSI,JIS
Application
Water, Oil, Air
Size Range
1/4"~2"
Body Material
SS304/ SS316
Ball Material
CF8/CF8m.CF3m
Seat Material
PTFE/Rptfe
Pressure
Pn63/1000wog
Transport Package
Carton Box+Plywood Case
Specification
CE
Trademark
WENBAO
Origin
China
HS Code
8481804090
Production Capacity
10000PCS/Month

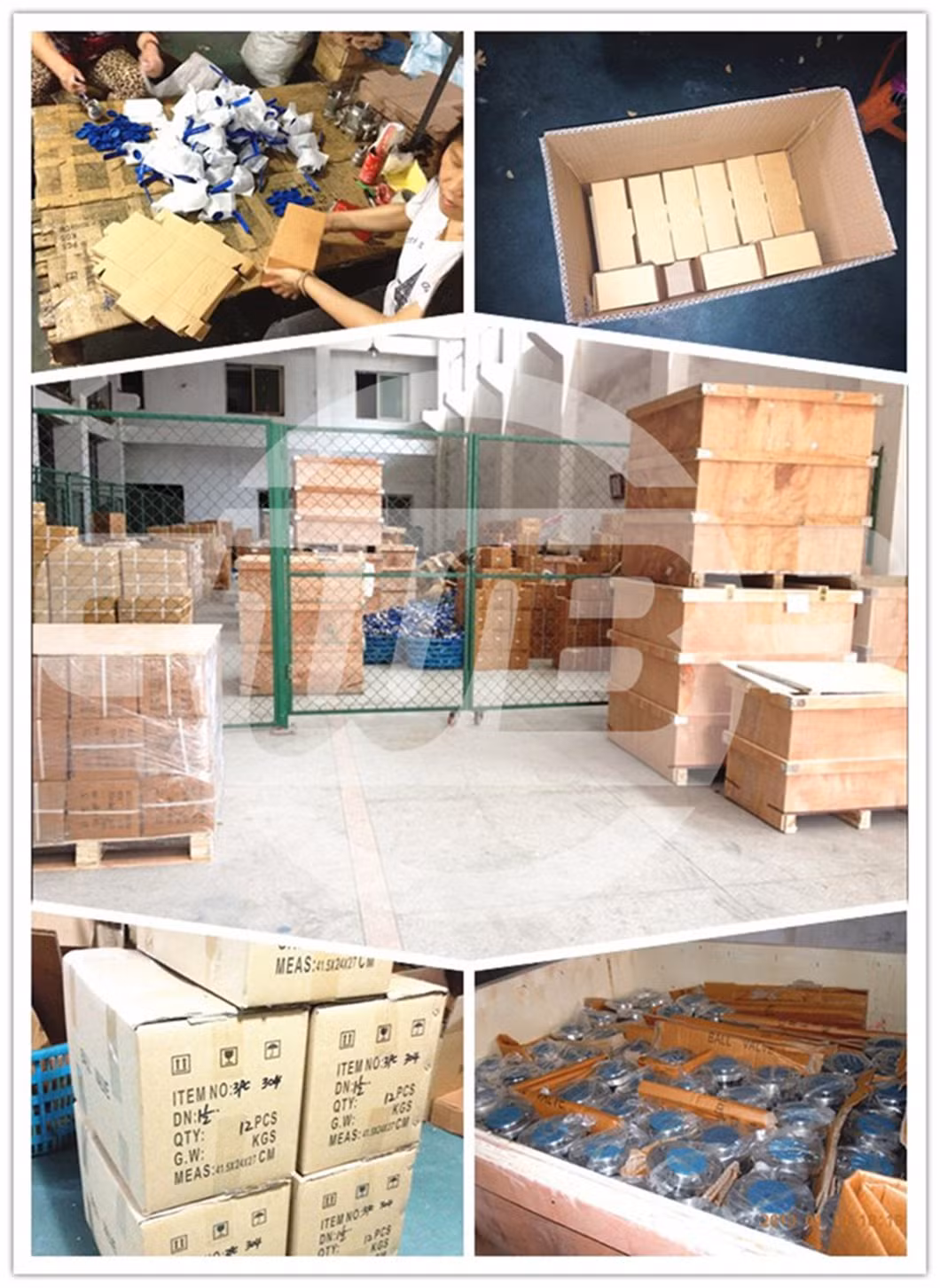

Packaging & Delivery
Package Size
42.00cm * 24.00cm * 24.00cm
Package Gross Weight
30.000kg
Product Description
PN63 Stainless Steel Floating Thread 2PC Ball Valve
Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE: 6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
REDUCED PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
| 1 | Body | SS316/SS304 | 7 | Thrust Washer | RTFE |
| 2 | Cap | SS316/SS304 | 8 | Packing Gland | SS316/SS304 |
| 3 | Seat | RTFE | 9 | Nut | SS/SS316/SS304 |
| 4 | Ball | ASTM A351-CF8M(316) | 10 | Handle | SS |
| 5 | Stem | F316/F304 | 11 | Handle Cover | Plastic |
| 6 | Packing | PTFE | 12 | Gasket | RTFE |
Wenbao Valve Co.,Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve,1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001:2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea,CE of Europe, etc.
